RS988 Flap Access Barrier Bi-directional Access Control Security for Restricted Areas

RS988 Flap Access Barrier Bi-directional Access Control Security for Restricted Areas

Product Introduction

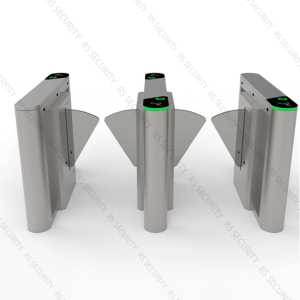

The RS988 Flap Access Barrier is a premium bi-directional access control solution engineered to secure restricted areas while ensuring smooth pedestrian flow. As a top-tier flap access barrier, it features a rugged 304 stainless steel construction, delivering exceptional durability and corrosion resistance for indoor and sheltered outdoor use. Designed for normally closed operation, this flap access barrier retracts its acrylic or soft arm into the pedestal upon valid authorization (via card, biometrics, or push button), allowing authorized users to pass, and closes rapidly to deter tailgaters.

With a 0.6S open/close time and 30-40 people per minute transit speed, it balances security and efficiency for high-traffic environments. Equipped with 5-13 pairs of sensor beams, it offers reliable anti-punch and anti-tailgating protection, ensuring only one person passes per authorization. The power-off anti-panic function automatically opens the barrier for safe evacuation, while 5pcs high-brightness LED lamps provide clear flow direction guidance. Compatible with all access control systems and supporting RS485/RS232 communication, this flap access barrier is easy to integrate and customize. Perfect for banks, offices, schools, prisons, and exhibition halls, it provides robust high-security access management for diverse commercial, industrial, and public settings.

Product Features

• Bi-directional control: Flexible operation via authorized card, biometrics, push button, or remote control
• Seamless access integration: Compatible with all types of access control systems for customized security setups
• High-brightness LED guidance: 5pcs LED lamps clearly indicate flow direction, optimizing user convenience
• Anti-punch protection: Barrier remains open if a person is detected in the passageway to prevent injury
• Anti-tailgating design: Allows only one person to pass per valid authorization, enhancing security
• Anti-panic power-off function: Automatically opens during power outages for safe emergency evacuation
• Dual operating modes: Normally closed (standard) or normally open (for group passage) to fit diverse needs
• Remote control capability: Supports wireless opening/closing for convenient management (optional feature)
• Card reading memory: User-configurable for single or multiple card-reading passes
• Failure detection & alarm: Real-time alerts for system malfunctions to ensure continuous security coverage
• Multi-signal compatibility: Works with dry contact signals and relay signals for flexible integration
• Durable construction: 304 stainless steel body with acrylic/soft arm and acrylic/stainless steel top cover
• High-performance motor: 24V DC brushless motor ensures stable, silent, and long-lasting operation
• High reliability: 10,000,000 times MTBF for consistent performance in demanding environments

Product Specification Table

<<

Brief Description

• Product: RS988 Bi-directional Control Flap Access Barrier
• Material: 304 Stainless Steel + Acrylic/Soft Arm
• Dimensions: 1500x300x980mm
• Net Weight: 80kg/unit
• Open/Close Time: 0.6S
• Passage Width: 600mm (Std) / 900mm (Opt)
• Transit Speed: 30-40 people/minute
• Core Functions: Anti-tailgating, Anti-panic, LED Guidance
• MTBF: 10,000,000 times

Application Areas

This high-security flap access barrier is designed for access control in diverse scenarios, including:

• Financial Institutions: Bank lobbies and financial centers to protect restricted areas and customer data
• Corporate & Office Buildings: Managing employee and visitor access to office floors and sensitive departments
• Educational Institutions: Schools, colleges, and universities to secure campus buildings and administrative areas
• Fitness Clubs & Gyms: Controlling member access and preventing unauthorized entry to facility premises
• High-Security Zones: Prisons, military bases, and government buildings to restrict access to authorized personnel
• Hospitality & Commercial Spaces: Hotel lobbies, shopping malls, and exhibition halls for visitor management
• Industrial Facilities: Factories and warehouses to secure production zones and storage areas
• Transportation Hubs: Ports and terminals to control access to restricted operational areas
