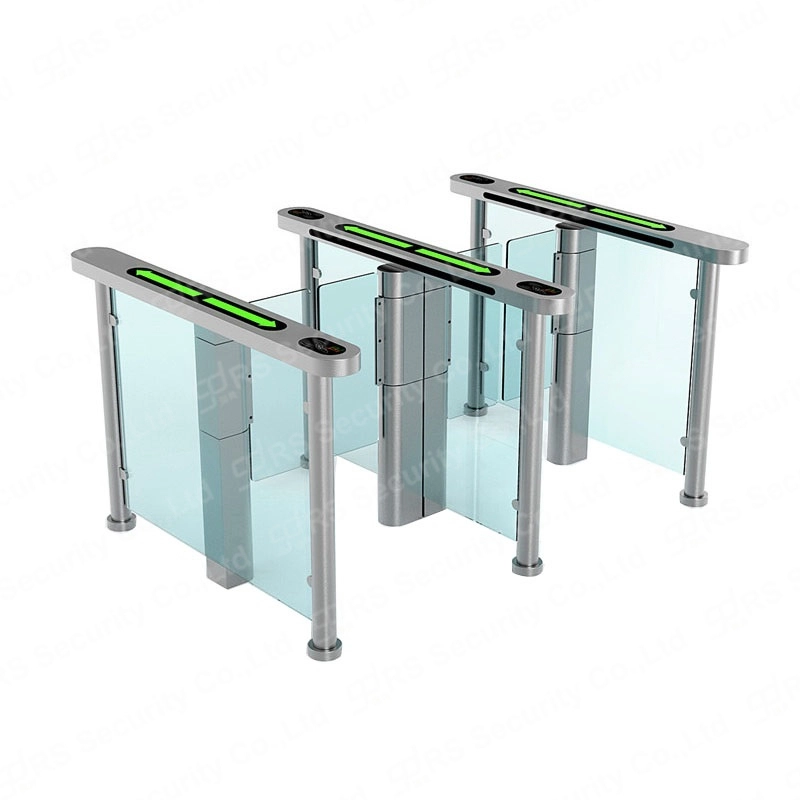

RS716-9 304 Stainless Steel Slim Access Turnstile Acrylic Glass Sides for Office Building Exhibition Hall

RS716-9 304 Stainless Steel Slim Access Turnstile Acrylic Glass Sides for Office Building Exhibition Hall

Product Introduction

The RS716-9 Bi-directional Slim Turnstile is a high-performance security access device engineered to protect restricted areas while ensuring efficient traffic management. As a professional turnstile, it operates in a normally closed mode: its barriers retract into the pedestal only after valid authentication—such as authorized cards, biometric identifications, or push buttons—to allow authorized users to pass, then close rapidly to deter tailgaters.

Crafted from durable 304 stainless steel, this slim turnstile boasts an elegant, space-saving design (1400x120x1000mm) that blends seamlessly with various environments. Equipped with a 24V servo motor, it offers adjustable speed and fast opening/closing times (0.2-2s), supporting a transit speed of 40-45 people per minute—ideal for high-traffic scenarios. Ten pairs of sensor beams enable anti-punch and anti-tailgating protection, ensuring only one person passes per valid credential. This versatile turnstile integrates with all types of access control systems and works indoors or in sheltered outdoor areas. It is widely used in bank lobbies, office buildings, fitness clubs, schools, prisons, hotel lobbies, ports, and exhibition halls, delivering reliable security for both general and high-security sites.

Product Features

• Slim body structure with a beautiful, space-saving design
• Fast operating speed with adjustable opening and closing time
• Reliable lock and unlock system for stable security performance
• Bi-directional control, compatible with authorized cards, biometric identifications, push buttons, etc.
• Seamless integration with all kinds of access control systems
• Flow direction guidance via high-brightness LED lamps
• Anti-punch function: barriers won’t close if people are detected inside the passageway
• Anti-tailgating design: only one person allowed to pass per valid authentication
• Anti-panic feature: barriers open automatically when power is off for safe evacuation
• Switchable operation modes: normally closed (standard) or normally open (for group pass)
• Remote control support for convenient opening and closing
• Card reading memory function: user-configurable for single or multiple time card reading passing
• Failure detection and alarm functions for timely security alerts
• Optional features: counter, voice speech, remote control

Product Specification Table

Brief Description

• Model: RS716-9 turnstile
• Material: 304 stainless steel
• Input Voltage: 220V AC ±10%
• Motor: 24V servo motor
• Transit Speed: 40-45 people/minute
• Close & Open Time: 0.2-2s
• Clear Passage Width: 600mm-900mm
• Sensor Beams: 10 pairs of sensors
• Service Life: 10,000,000 operations

Application Areas

This RS716-9 turnstile is suitable for the following scenarios requiring secure access control:

• High-security places (e.g., prisons)
• Financial institutions (e.g., bank lobbies)
• Commercial buildings (e.g., office buildings, hotel lobbies)
• Industrial sites (e.g., factories, ports)
• Recreational facilities (e.g., fitness clubs, exhibition halls)
• Educational institutions (e.g., schools)
