RS518 Vertical Turnstile Stainless Steel Indoor & Outdoor Access Security

RS518 Vertical Turnstile Stainless Steel Indoor & Outdoor Access Security

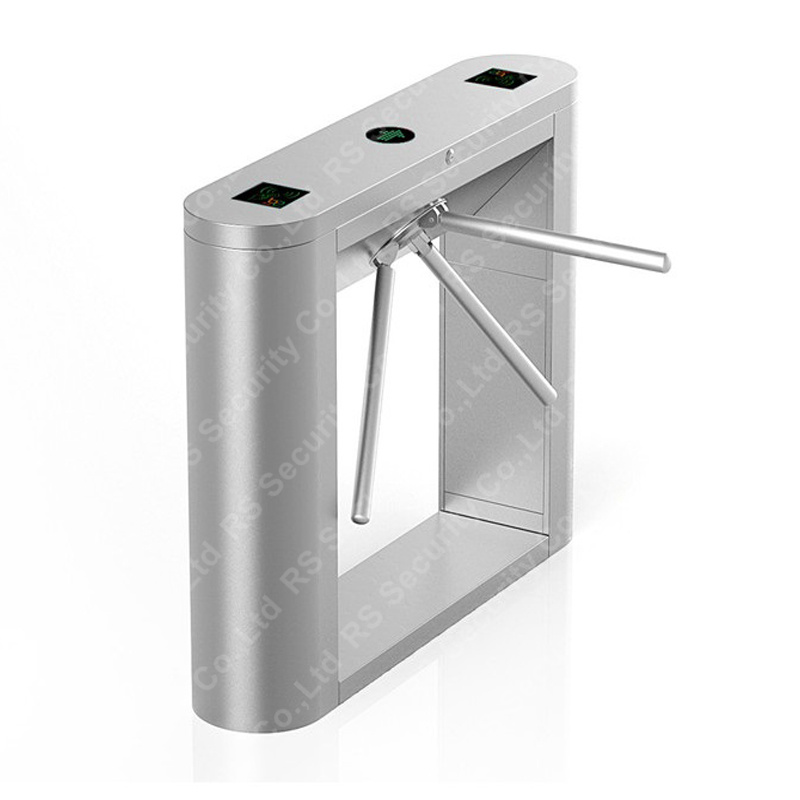

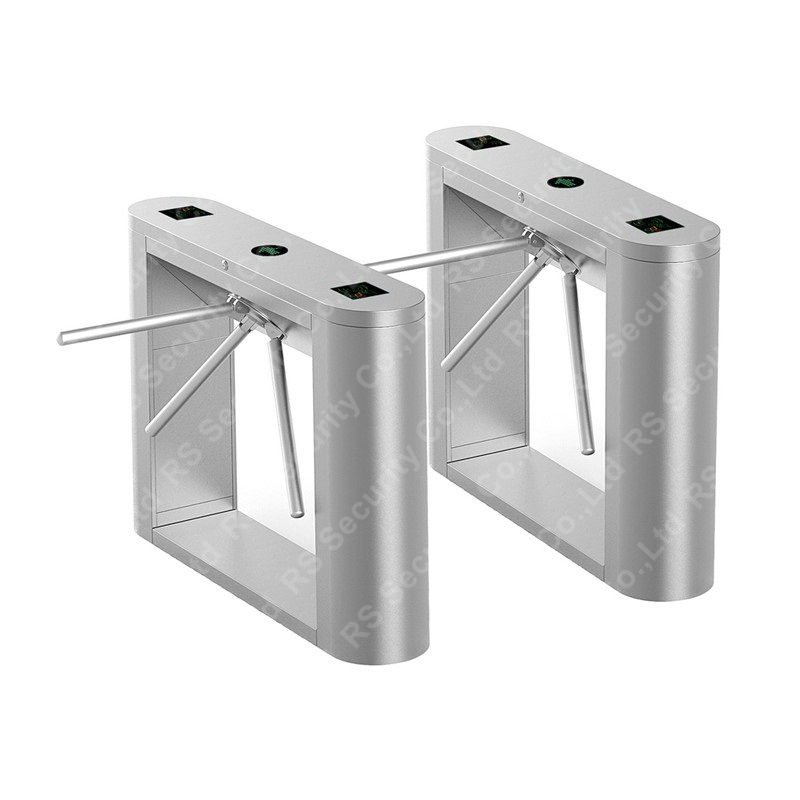

The RS518 vertical turnstile is a premium automatic access control system crafted from high-quality 304 stainless steel, offering exceptional durability, corrosion resistance, and reliable performance for both indoor and outdoor use (with shelter). This vertical turnstile features three rotating arms that operate in one or two directions, effectively preventing unauthorized access to restricted areas while ensuring smooth passage for authorized users.

Controlled by access control systems, biometric identifications, push buttons, or remote control, the vertical turnstile unlocks its electromagnet instantly upon receiving a valid signal, enabling quick entry with an open/close time of just 0.6 seconds. With a compact size of 1200x280x980mm, net weight of 50kg per unit, and transit speed of 30-40 people per minute, it balances space-saving design with efficient crowd management.

The 550mm clear passage width ensures comfortable movement, while the high-brightness LED indicator lamp provides clear flow guidance. Easy to install and economic, this vertical turnstile integrates seamlessly with all types of access control systems, making it ideal for high-security places, factories, fitness clubs, prisons, hotel lobbies, schools, ports, and exhibition halls—delivering cost-effective security and peace of mind for businesses and institutions.

Key Features of Vertical Turnstile

• Bidirectional control via authorized card, biometric identification, push button, or remote control
• Seamless integration with all kinds of access control systems for flexible security deployment
• High-brightness LED indicator lamp provides clear flow direction guidance for users
• Power-off auto-drop arm design allows free exit/entrance during emergencies
• Manual arm raising when powered on, ensuring energy-efficient operation
• Remote control functionality for convenient opening and closing operations
• Card reading memory function with adjustable single or multiple pass settings
• Built-in failure detection and alarm system for timely maintenance and security alerts
• Optional features including counter, voice speech, cooler fan, and thermostat for customized needs

Vertical Turnstile Specifications

Quick Specification Highlights

• Material: 304 stainless steel
• Size: 1200x280x980mm
• Net Weight: 50kg/unit
• Transit Speed: 30-40 people/minute
• Clear Passage Width: 550mm
• Open/Close Time: 0.6S
• Input Voltage: 220V AC220±10%
• Communication Interface: RS485/RS232
• Work Environment: Indoor & outdoor (shelter)

Applications of Vertical Turnstile

The RS518 vertical turnstile is widely applicable in scenarios requiring efficient access control and security management:

• High-security facilities and correctional institutions (prisons)
• Factories and industrial plants
• Fitness clubs and recreational centers
• Hotel lobbies and hospitality venues
• Schools, colleges, and educational institutions
• Ports, terminals, and transportation hubs
• Exhibition halls and event venues
• Office buildings and commercial complexes
• Government buildings and restricted access areas
