RS418 Heavy Duty Waist Height Turnstile Robust High-Traffic Solution

RS418 Heavy Duty Waist Height Turnstile Robust High-Traffic Solution

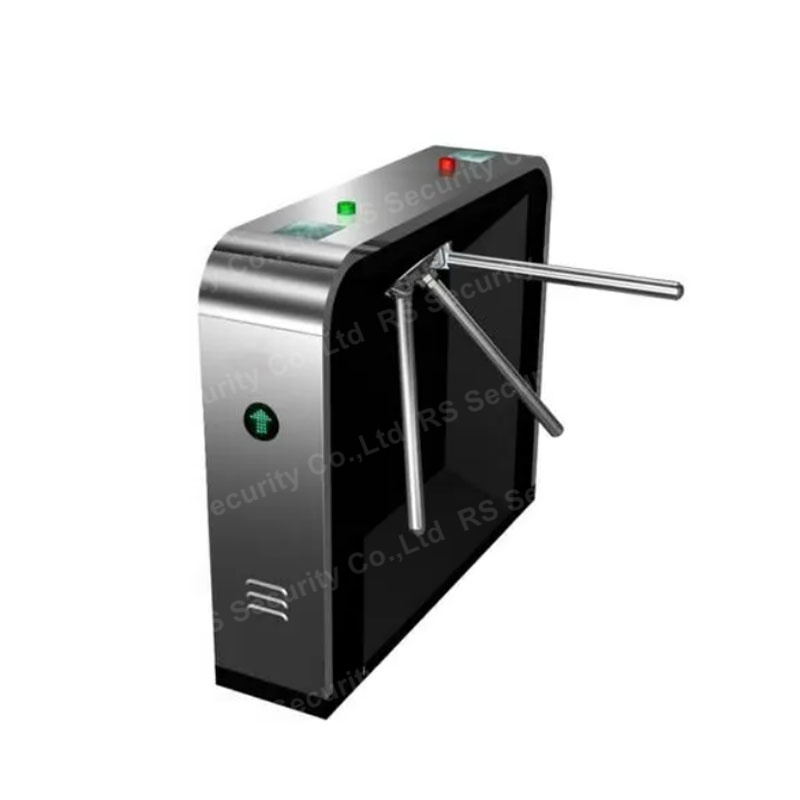

The RS418 heavy duty waist height turnstile is a premium access control system engineered for high-traffic public and commercial environments, crafted from 304 stainless steel with a 2.0mm thick body for exceptional durability and longevity. This waist height turnstile features a heavy-duty mechanism core with a horizontal clutch layout and a durable servo motor, ensuring reliable performance even with constant use—backed by an impressive MTBF of 10 million times.

With three rotating arms that operate in one or two directions, the waist height turnstile effectively prevents unauthorized access while facilitating smooth passage for authorized users, controlled by access control systems, biometric identifications, push buttons, or remote control. It unlocks instantly upon receiving a valid signal, with an open/close time of 0.6 seconds and a transit speed of 40 people per minute. Offering flexible clear passage widths (550mm for turnstile, 900mm for barrier mode), this waist height turnstile is easy to install and integrates seamlessly with all access control systems. Ideal for train stations, metro stations, airports, inspection ports, and exhibition halls, it delivers consistent security and crowd management for high-demand scenarios.

Key Features of Waist Height Turnstile

• Heavy-duty construction with 304 stainless steel (2.0mm thick) and durable servo motor for long-term reliability
• Bidirectional control via authorized card, biometric identification, push button, or remote control
• Seamless integration with all kinds of access control systems (supports facial recognition, Mifare cards, QR code readers)
• High-brightness LED lamp provides clear flow direction guidance for users
• Power-off auto-drop arm design allows free exit/entrance during emergencies
• Manual arm raising when powered on, ensuring energy-efficient operation
• Card reading memory function with adjustable single or multiple pass settings
• Built-in failure detection and alarm system for timely maintenance and security alerts
• Flexible passage widths: 550mm (turnstile) and 900mm (barrier) to meet different space needs
• Integrated cooler fan for stable performance, with optional anti-fingerprint spot feature

Waist Height Turnstile Specifications

Quick Specification Highlights

• Material: 304 stainless steel (2.0mm thick)
• Size: 1200x280x980mm
• Net Weight: 55kg/unit
• Transit Speed: 40 people/minute
• Clear Passage Width: 550mm/900mm
• Open/Close Time: 0.6S
• Input Voltage: 110V/220V AC220±10%
• Communication Interface: RS485/RS232
• MTBF: 10 million times

Applications of Waist Height Turnstile

The RS418 waist height turnstile is specifically designed for high-traffic public and security-sensitive environments:

• Metro stations and subway systems (proven use in Shenzhen, Shanghai metro)
• Train stations and railway terminals
• Airports and aviation hubs
• Customs inspection ports and border checkpoints
• Large exhibition halls and event venues
• Public transportation hubs with heavy foot traffic
• Commercial complexes and high-capacity public buildings
• Government inspection facilities and secure entry points
• Crowded public areas requiring efficient access control
