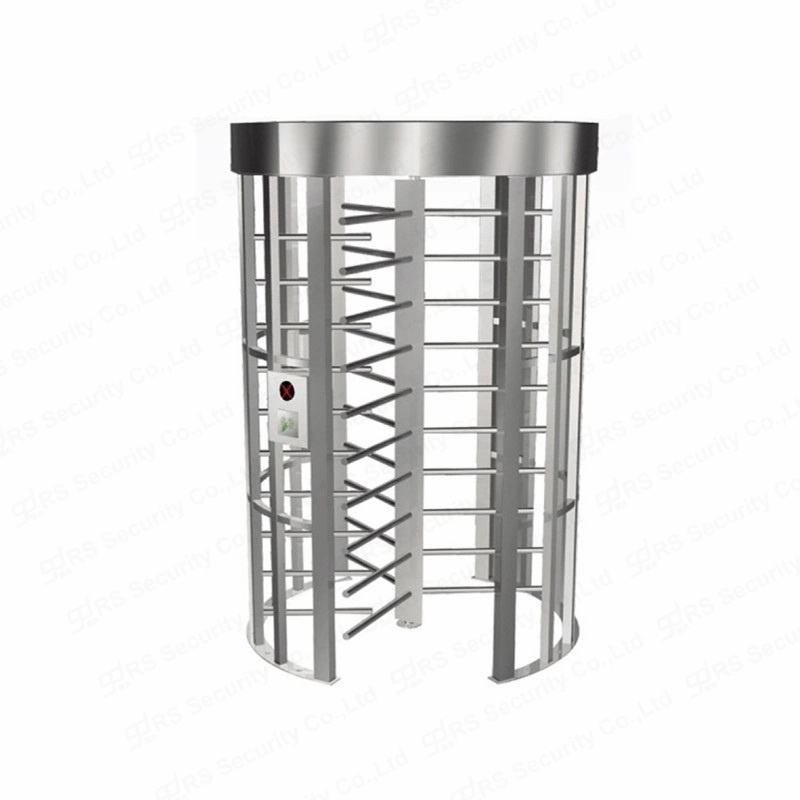

RS997 Full Height Turnstile Gate Heavy-duty Single-person Access Security Door
Product Introduction
The RS997 Full Height Turnstile Gate is a heavy-duty security access control device engineered to establish strict single-person access and prevent unauthorized entry for both indoor and outdoor environments. As a premium full height turnstile gate, it adopts a robust modular structure with heavy-duty solenoids rated for continuous operation, ensuring long-term reliability even in arduous conditions.
With dimensions of 1500×1500×2300mm and a 550mm lane width, this full height turnstile gate balances security and pedestrian flow efficiency, while its 304# SUS cabinet (316SUS optional) and stainless steel/galvanized barriers resist corrosion and vandalism. It operates seamlessly in -28℃~60℃ and 20%~95% non-condensing humidity, making it suitable for sheltered outdoor use. Equipped with flexible access control compatibility (fingerprint, palm, RFID, etc.) and emergency fire unlock, this full height turnstile gate is the ideal choice for high-security sites like high-end residential areas, prisons, schools, military bases, scenic spots, and factories—delivering stable, safe, and cost-effective access management.
Product Features
- Heavy-duty continuous-duty solenoids: Ensure optimum reliability and consistent unlocking/locking performance
- Durable mechanism components: Maintain adjustment stability even after years of use in harsh environments
- Single-person passage design: Arm spacing and movement restrict one entry/exit per valid access signal, preventing tailgating
- Mantrap security: Captures pedestrians at biometric readers (fingerprint/palm) or digital pads; locks arms if access is invalid
- Fire emergency unlock: Automatically releases barriers for free evacuation when fire input is triggered
- Universal access control compatibility: Works with any access system (coded cards, biometrics, push buttons, etc.) for flexible integration
- Multiple working modes: Supports two-direction card reading, one-way passage, and free-pass configuration to adapt to different scenarios
- Automatic reset function: Locks automatically if pedestrians don’t pass within adjustable preset time after opening
- Power-off flexibility: Center rotor defaults to free (optional locked) to meet emergency evacuation or security protocols
- Remote emergency escape: Press emergency button (power on/off) to unlock rotor automatically for safe exit
- Controller functions: Built-in counting and optional LED digital display for traffic monitoring; memory function for data retention
- All-environment adaptability: Operates in -28℃~60℃ and 20%~95% humidity, suitable for indoor/outdoor (sheltered) use
Product Specification Table
| Specification Item |
Details |
| Model Number |
RS997 |
| Product Type |
Pedestrian Full Height Turnstile Gate |
| Power Requirements |
AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz |
| Working Temperature |
-28℃ ~ 60℃ |
| Working Humidity |
20% ~ 95% (non-condensing) |
| Working Environment |
Indoor / Outdoor (if sheltered) |
| Lane Width |
550mm |
| Infrared Sensor |
None |
| Dimensions (L×W×H) |
1500 × 1500 × 2300mm |
| Weight with Packing |
250kg |
| LED Indicator |
Supported |
| Cabinet Material |
304# SUS; Optional: 316SUS, Powder Coated |
| Lid Material |
304# SUS |
| Barrier Material |
Stainless Steel / Galvanized |
| Barrier Movement |
Indoor / Outdoor |
| Emergency Mode |
Yes (Fire Input + Remote Emergency Button) |
| MCBF (Mean Cycles Between Failures) |
5,000,000 |
| Warranty |
2 Years |
Brief Description
- Product: RS997 Full Height Turnstile Gate
- Power Supply: AC 100-120V / 200-240V, 50/60Hz
- Working Temperature: -28℃ ~ 60℃
- Lane Width: 550mm
- Dimensions: 1500×1500×2300mm
- Packing Weight: 250kg
- Cabinet Material: 304# SUS (316SUS optional)
- Emergency Mode: Supported (Fire + Remote Unlock)
- Warranty: 2 Years
Application Areas
This full height turnstile gate is designed for high-security and controlled-access scenarios, including:
- High-End Residential Complexes: Restrict access to residents and authorized visitors, enhancing community security
- Correctional Facilities (Prisons): Ensure strict single-person passage to prevent escapes or unauthorized entry
- Educational Institutions: Manage access to schools, colleges, or university dormitories/ research areas
- Military & Government Bases: Protect sensitive areas with robust access control and anti-intrusion features
- Industrial Sites: Control entry to factories, warehouses, or hazardous production zones for worker safety
- Scenic Spots & Recreational Areas: Manage tourist flow while preventing ticket evasion or unauthorized entry
- Corporate Headquarters: Secure office lobbies, executive floors, or confidential departments
- Transportation Hubs: Restrict access to staff-only areas in airports, railway stations, or seaports
