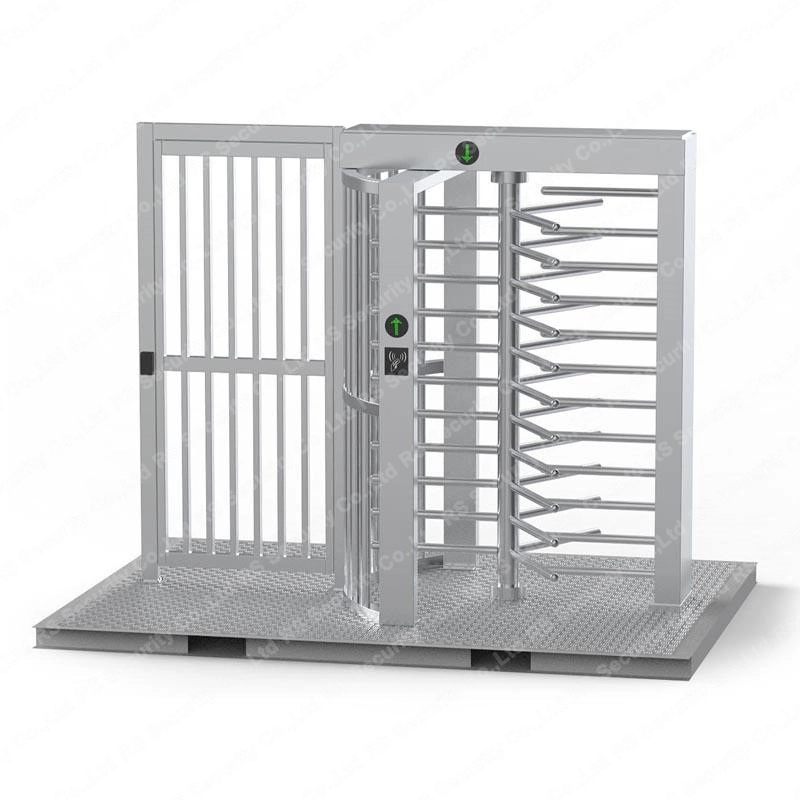

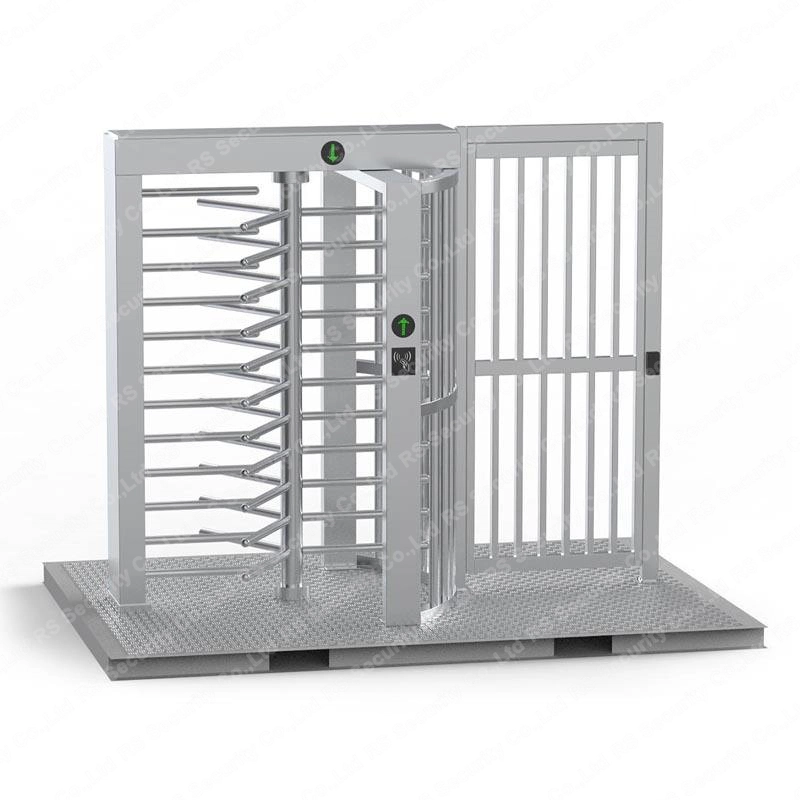

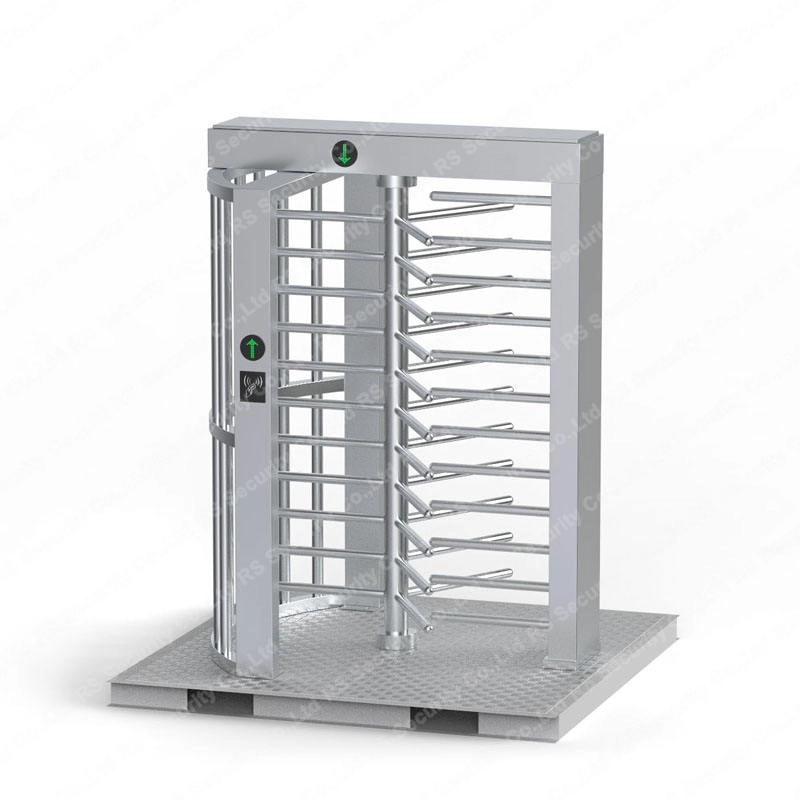

Heavy-Duty Full Height Turnstile Robust Stainless Steel Construction Access Control System Security Door
Product Introduction
The Heavy-Duty Full Height Turnstile is a premium high-security access control device engineered to restrict unauthorized entry and ensure single-person passage in critical environments. As a top-tier full height turnstile, it features a robust 304# SUS construction and solenoid control system, delivering reliable performance even under arduous conditions for years. With a transit speed of 30 persons per minute and 600mm passage width, this full height turnstile balances security with efficient pedestrian flow, making it suitable for both high-traffic and restricted-access scenarios.
It integrates seamlessly with any access control system (coded cards, fingerprint readers, push buttons, etc.) and offers multiple working modes to adapt to diverse site requirements. Equipped with emergency escape functions, fire input response, and automatic reset, it prioritizes safety while maintaining strict access control. Whether deployed in high-end residential complexes, prisons, military bases, schools, or corporate facilities, this full height turnstile establishes a strong line of defense, preventing tailgating and unauthorized entry to protect people and assets.
Product Features
- Heavy-duty 304# SUS construction: Ensures corrosion resistance, vandalism protection, and long service life in harsh environments
- Solenoid control system: Rated for continuous duty cycle, providing quick, reliable unlocking and locking
- Single-person passage design: Arm spacing and movement restrict one entry/exit per valid activation signal, preventing tailgating
- Multi-mode operation: Supports two-direction card reading, one-way passage, free-pass configuration, and other customizable modes
- Emergency escape function: Remote-controlled emergency button unlocks the rotor automatically (power on/off) for safe evacuation
- Fire input response: Unlocks arms instantly in fire emergencies to facilitate free exit
- Automatic reset: Locks automatically if pedestrians don’t pass within the adjustable preset time after activation
- Power-off flexibility: Rotor defaults to free (optional locked) to meet different emergency protocols
- Universal access control compatibility: Works with coded cards, fingerprint/palm readers, push buttons, coins, or computer systems
- Controller functions: Built-in counting, memory, and optional LED digital display for traffic management
- All-weather adaptability: Operates in -25℃~+80℃ and 95% humidity, suitable for indoor/outdoor installations
- 120° rotation (3 bars): Ensures smooth, controlled movement while maintaining security
Product Specification Table
| Specification Item |
Details |
| Product Type |
Heavy-Duty Full Height Turnstile |
| Dimensions (L×W×H) |
1400×1395×2200mm |
| Material |
304# SUS (Stainless Steel) |
| Transit Speed |
30 Persons/Minute |
| Passage Width |
600mm |
| Input Voltage |
AC220V/110V±10V, 50/60HZ |
| Input Interface |
+12V Electrical Signal or Impulse Signal |
| Working Temperature |
-25℃ ~ +80℃ |
| Working Humidity |
95% (Non-Condensing) |
| Product Weight |
200KG |
| LED Indicator |
Yes |
| Control Type |
Solenoid Control |
| Rotation Degree |
120° (3 Bars) |
| Access Control Compatibility |
Coded Cards, Fingerprint/Palm Readers, Push Buttons, Coins, Computer Systems |
| Emergency Functions |
Fire Input Response, Remote Emergency Button, Power-Off Free Rotor (Default) |
| Additional Functions |
Automatic Reset, Counting, Memory, Optional LED Digital Display |
Brief Description
- Product: Heavy-Duty Full Height Turnstile
- Dimensions: 1400×1395×2200mm
- Material: 304# SUS Stainless Steel
- Transit Speed: 30 Persons/Minute
- Passage Width: 600mm
- Input Voltage: AC220V/110V±10V, 50/60HZ
- Working Temperature: -25℃ ~ +80℃
- Weight: 200KG
- Control Type: Solenoid Control (120° Rotation)
Application Areas
This full height turnstile is designed for high-security and restricted-access scenarios, including:
- High-End Residential Complexes: Restricts access to residents and authorized visitors, preventing unauthorized entry
- Correctional Facilities (Prisons): Ensures strict single-person passage and prevents escapes or contraband entry
- Military Bases & Government Buildings: Protects sensitive areas with robust access control and anti-tailgating features
- Schools & Universities: Manages entry to campus buildings, dormitories, or high-security research facilities
- Industrial Sites: Controls access to factories, warehouses, or hazardous areas to ensure worker safety
- Corporate Headquarters: Secures reception foyers, executive floors, or confidential departments
- Recreational Facilities: Manages flow in high-capacity venues (stadiums, amusement parks) while maintaining security
- Financial Institutions: Protects banks, vaults, or data centers with reliable single-person access control
