RS716-28 Security Turnstile Gate Glass / Acrylic Barriers Support Authorized Cards / Biometric Identifications / Push Buttons

RS716-28 Security Turnstile Gate Glass / Acrylic Barriers Support Authorized Cards / Biometric Identifications / Push Buttons

Product Introduction

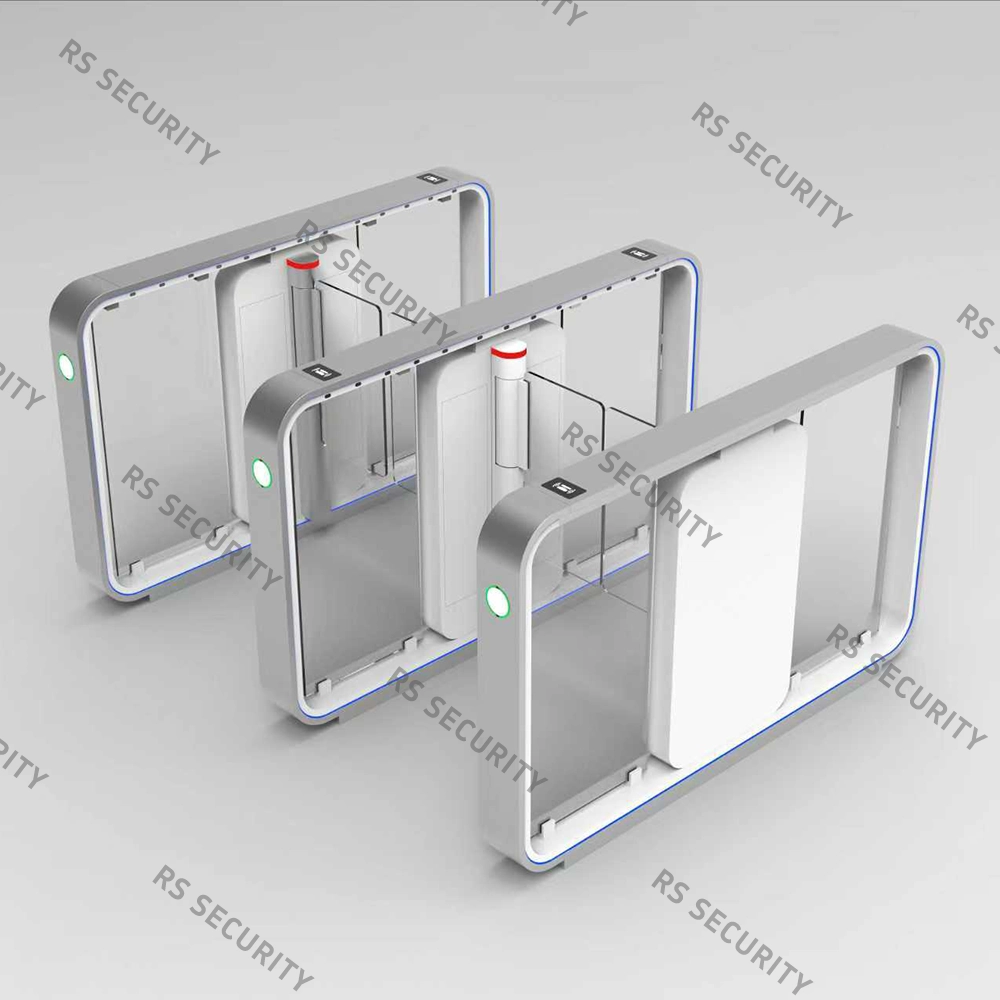

The RS716-28 Security Turnstile Gate is a professional access control solution engineered to safeguard restricted areas while ensuring efficient pedestrian flow. As a premium security turnstile gate, it operates in a normally closed mode, with tempered glass or acrylic barriers retracting into the stainless steel pedestal only after valid authentication—such as authorized cards, biometric identifications, or push buttons—to prevent unauthorized entry. Crafted from durable 304 stainless steel, this slim security turnstile gate boasts an elegant design (1600x150x1000mm) that saves space and blends seamlessly with various environments.

Equipped with a 24V servo motor, it offers adjustable speed and rapid opening/closing times (0.2-2s), achieving a transit capacity of 40-45 people per minute—ideal for high-traffic scenarios. Ten pairs of sensor beams enable anti-punch and anti-tailgating protection, ensuring only one person passes per valid credential. This versatile security turnstile gate integrates seamlessly with all types of access control systems and works in both indoor and sheltered outdoor settings. Its wide application scope includes bank lobbies, office buildings, fitness clubs, schools, prisons, hotel lobbies, ports, and exhibition halls, making it an ideal choice for any space requiring efficient, secure access management.

Product Features

• Slim body structure with a beautiful, space-efficient design that complements various environments
• Fast operating speed with adjustable opening and closing time (0.2-2s) for flexible traffic management
• Reliable lock and unlock system ensuring stable security performance in long-term use
• Bi-directional control supported by authorized cards, biometrics, push buttons, and other authentication methods
• Seamless integration with all kinds of access control systems for expanded functionality
• High-brightness RGB LED lights (blue/green/red/white) provide clear flow direction guidance
• Anti-punch function: barriers won’t close if people are detected inside the passageway
• Anti-tailgating design: only one person allowed to pass per valid authentication to prevent unauthorized entry
• Anti-panic feature: barriers open automatically during power outages for safe and rapid evacuation
• Dual operation modes: normally closed (standard security) or normally open (for group passage)
• Remote control support for convenient opening and closing operations
• Card reading memory function: user-configurable for single or multiple time card reading passing
• Failure detection and alarm functions for timely security alerts and maintenance
• Optional features: counter, voice speech, and remote control for enhanced usability

Product Specification Table

Brief Description

• Model: RS716-28 security turnstile gate
• Material: 304 stainless steel
• Input Voltage: 220V AC ±10%
• Motor: 24V servo motor
• Transit Speed: 40-45 people/minute
• Close & Open Time: 0.2-2s
• Clear Passage Width: 600mm-900mm
• Sensor Beams: 10 pairs of sensors
• Service Life: 10,000,000 operations

Application Areas

This RS716-26 security turnstile gate is suitable for the following scenarios requiring strict access control and reliable security:

• High-security places (e.g., prisons, data centers, government buildings)
• Financial institutions (e.g., bank lobbies, vault entrances)
• Commercial buildings (e.g., office buildings, hotel lobbies, shopping malls)
• Industrial sites (e.g., factories, ports, warehouses)
• Recreational facilities (e.g., fitness clubs, exhibition halls, stadiums)
• Educational institutions (e.g., schools, colleges, research centers)
• Public infrastructure (e.g., subway stations, airports, railway stations)
