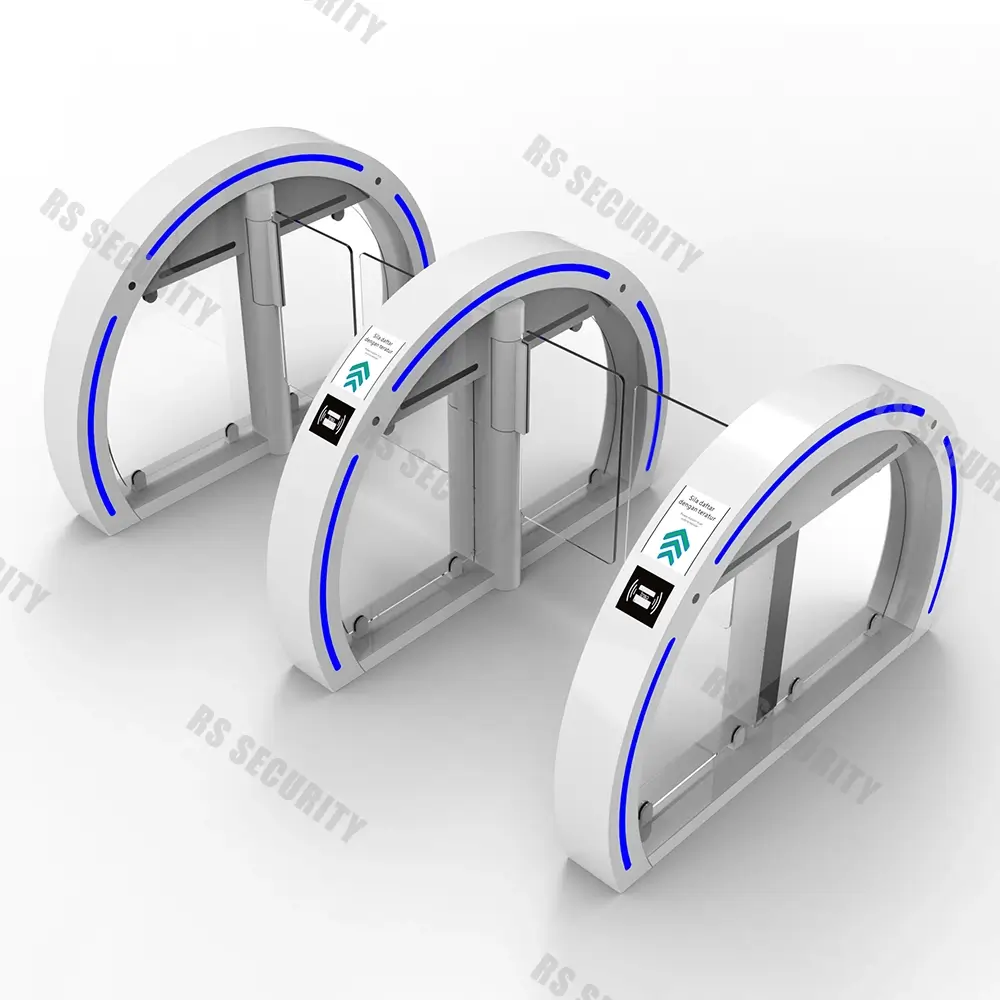

RS716-2 Bi-directional Slim Speed Gate High-Security Access Control Door

RS716-2 Bi-directional Slim Speed Gate High-Security Access Control Door

The RS716-2 speed gate is a premium bi-directional access control solution designed for restricting unauthorized entry to restricted areas. Crafted with 304 stainless steel, this slim and stylish speed gate combines durability with aesthetic appeal, making it suitable for various indoor and outdoor (sheltered) environments. With a fast opening and closing time of 0.2-2 seconds and a throughput of 40-45 people per minute, this speed gate ensures efficient traffic flow while maintaining strict security.

Equipped with 10 pairs of sensor beams, it features anti-punch and anti-tailgating functions, allowing only one authorized person to pass per valid credential. The speed gate operates in normally closed mode, retracting its tempered or acrylic glass arm upon valid card presentation, biometric identification, or push button input.
Ideal for bank lobbies, office buildings, fitness clubs, schools, prisons, and exhibition halls, this high-security speed gate can be integrated with all types of access control systems via RS485/232/TCP/IP communication interfaces. Its anti-panic function opens the barrier automatically during power outages, ensuring safe evacuation, making it a reliable speed gate choice for both security and convenience.

Key Features of RS716-2 Speed Gate

• Slim body design with elegant appearance, crafted from 304 stainless steel
• Adjustable speed with fast opening/closing time (0.2-2 seconds)
• Reliable lock and unlock system for enhanced security
• Bi-directional control support (authorized card, biometrics, push button, etc.)
• Seamless integration with all types of access control systems
• High-brightness LED lights for clear flow direction guidance
• Anti-punch function: barrier won’t close if people are detected in the passageway
• Anti-tailgating design: allows only one person per authorized credential
• Anti-panic mode: automatic barrier opening during power outages for safe evacuation
• Switchable between normally closed and normally open (for group passage) modes
• Remote control operation for convenient opening and closing
• Card reading memory function: configurable for single or multiple time card reading passing
• Failure detection and alarm functions for proactive maintenance

RS716-2 Speed Gate Specification Table

Quick Facts About RS716-2 Speed Gate

• Model: RS716-2 Bi-directional Slim Speed Gate
• Material: 304 Stainless Steel
• Dimensions: 1600×160×1000mm
• Opening/Closing Time: 0.2-2 seconds
• Transit Speed: 40-45 people/minute
• Passage Width: 600mm-900mm
• Sensor Beams: 10 Pairs (Anti-punch/Anti-tailgating)
• Power Supply: 220V AC ±10%
• Service Life: 10,000,000 Operations

Application Areas of RS716-2 Speed Gate

1. Commercial & Office Spaces

• Office buildings (employee access control)
• Bank lobbies (restricting access to confidential areas)
• Hotel lobbies (guest and staff entry management)
• Exhibition halls (visitor flow control and security)

2. Institutional & Educational Facilities

• Schools and universities (campus and classroom access)
• Prisons and correctional facilities (high-security entry control)
• Daycare centers and nurseries (child safety and authorized entry)

3. Recreational & Industrial Spaces

• Fitness clubs and gyms (member access verification)
• Factories and industrial plants (workshop and restricted area access)
• Ports and logistics centers (staff and vehicle access management)

4. Public & Semi-Public Areas

• Government buildings (official and visitor entry control)
• Hospitals and clinics (restricting access to sensitive departments)
• Shopping malls (VIP area or staff access management)
