RS916-2 Turnstile Access Secure Management Fast Operating Speed Anti-punch Electric Door

RS916-2 Turnstile Access Secure Management Fast Operating Speed Anti-punch Electric Door

Product Introduction

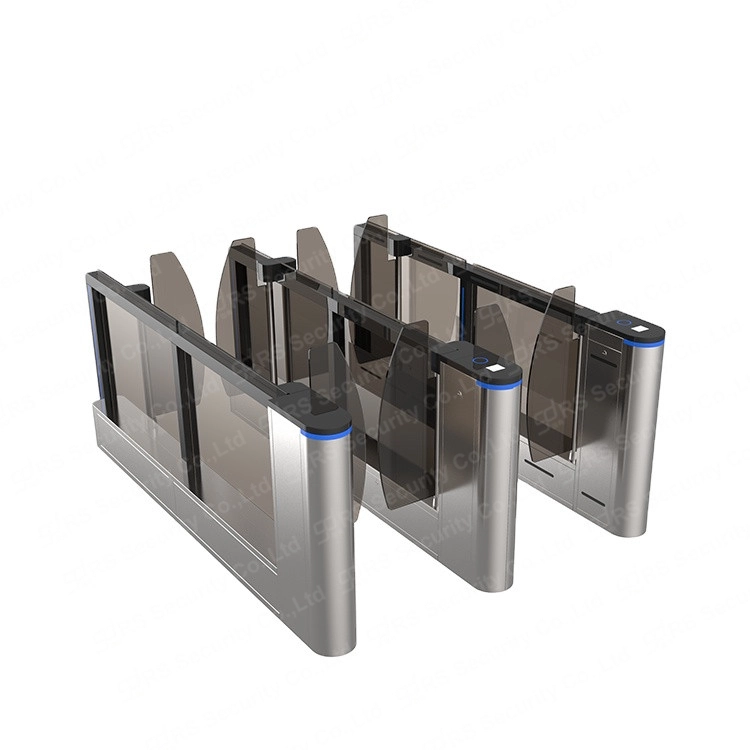

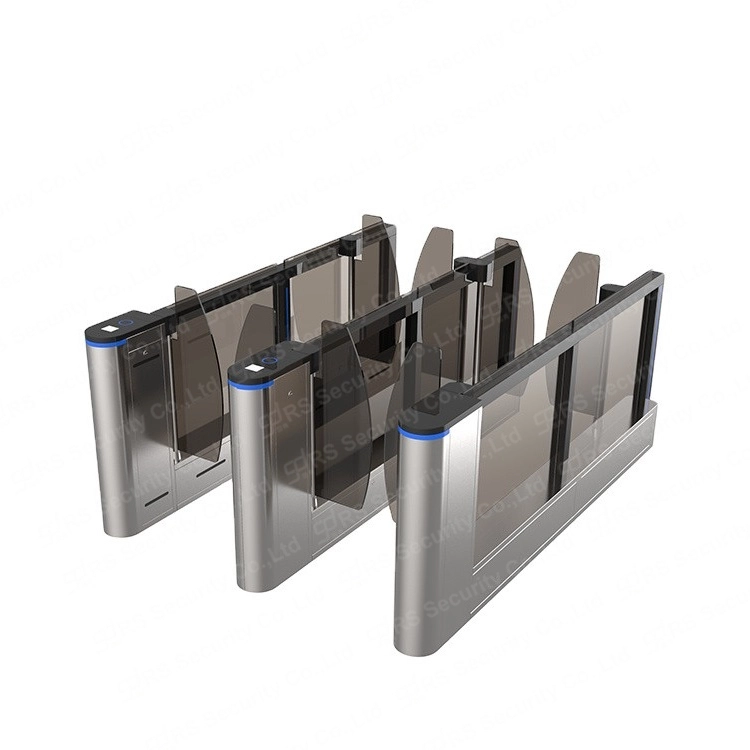

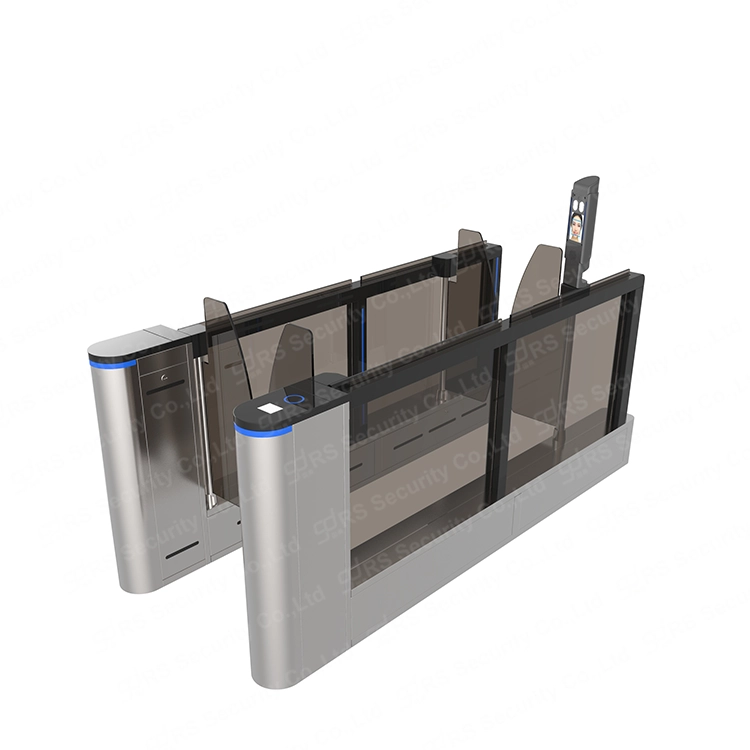

The RS916-2 Turnstile Access is a professional bi-directional access control device engineered to deliver strict security management while ensuring efficient pedestrian flow. As a premium turnstile access solution, it operates in a normally closed mode, with tempered glass or acrylic barriers retracting into the 304 stainless steel pedestal only after valid authentication—such as authorized cards, biometric identifications, or push buttons—to prevent unauthorized entry. Its robust yet slim design (2800x220x1080mm) makes it suitable for high-traffic areas, balancing durability with space efficiency.

Equipped with a 24V servo motor, this turnstile access device offers adjustable speed and rapid opening/closing times (0.2-2s), achieving a transit capacity of 40-45 people per minute—ideal for busy environments. Ten pairs of sensor beams enable anti-punch and anti-tailgating protection, ensuring only one person passes per valid credential. This versatile turnstile access system integrates seamlessly with all types of access control systems and works in both indoor and sheltered outdoor settings. Its wide application scope includes bank lobbies, office buildings, fitness clubs, schools, prisons, hotel lobbies, ports, and exhibition halls, making it a reliable choice for any space requiring efficient, secure access management.

Product Features

• Slim body structure (2800x220x1080mm) with a sleek, durable design for high-traffic environments
• Fast operating speed with adjustable opening and closing time (0.2-2s) for flexible traffic control
• Reliable lock and unlock system ensuring stable security performance in long-term heavy use
• Bi-directional control supported by authorized cards, biometrics, push buttons, and other authentication methods
• Seamless integration with all kinds of access control systems for expanded functionality
• High-brightness RGB LED lights (blue/green/red/white) provide clear flow direction guidance
• Anti-punch function: barriers won’t close if people are detected inside the passageway
• Anti-tailgating design: only one person allowed to pass per valid authentication to prevent unauthorized entry
• Anti-panic feature: barriers open automatically during power outages for safe and rapid evacuation
• Dual operation modes: normally closed (standard security) or normally open (for group passage)
• Remote control support for convenient opening and closing operations
• Card reading memory function: user-configurable for single or multiple time card reading passing
• Failure detection and alarm functions for timely security alerts and maintenance
• Optional features: counter, voice speech, and remote control for enhanced usability

Product Specification Table

Brief Description

• Model: RS916-2 turnstile access
• Material: 304 stainless steel (body + top cover)
• Input Voltage: 220V AC ±10%
• Motor: 24V servo motor
• Transit Speed: 40-45 people/minute
• Close & Open Time: 0.2-2s
• Clear Passage Width: 600mm-900mm
• Sensor Beams: 10 pairs of sensors
• Service Life: 10,000,000 operations

Application Areas

This RS916-2 turnstile access is suitable for the following scenarios requiring strict access control and reliable security:

• High-security places (e.g., prisons, data centers, government buildings)
• Financial institutions (e.g., bank lobbies, vault entrances)
• Commercial buildings (e.g., office buildings, hotel lobbies, shopping malls)
• Industrial sites (e.g., factories, ports, warehouses)
• Recreational facilities (e.g., fitness clubs, exhibition halls, stadiums)
• Educational institutions (e.g., schools, colleges, research centers)
• High-traffic public areas (e.g., subway stations, airports, railway stations)
